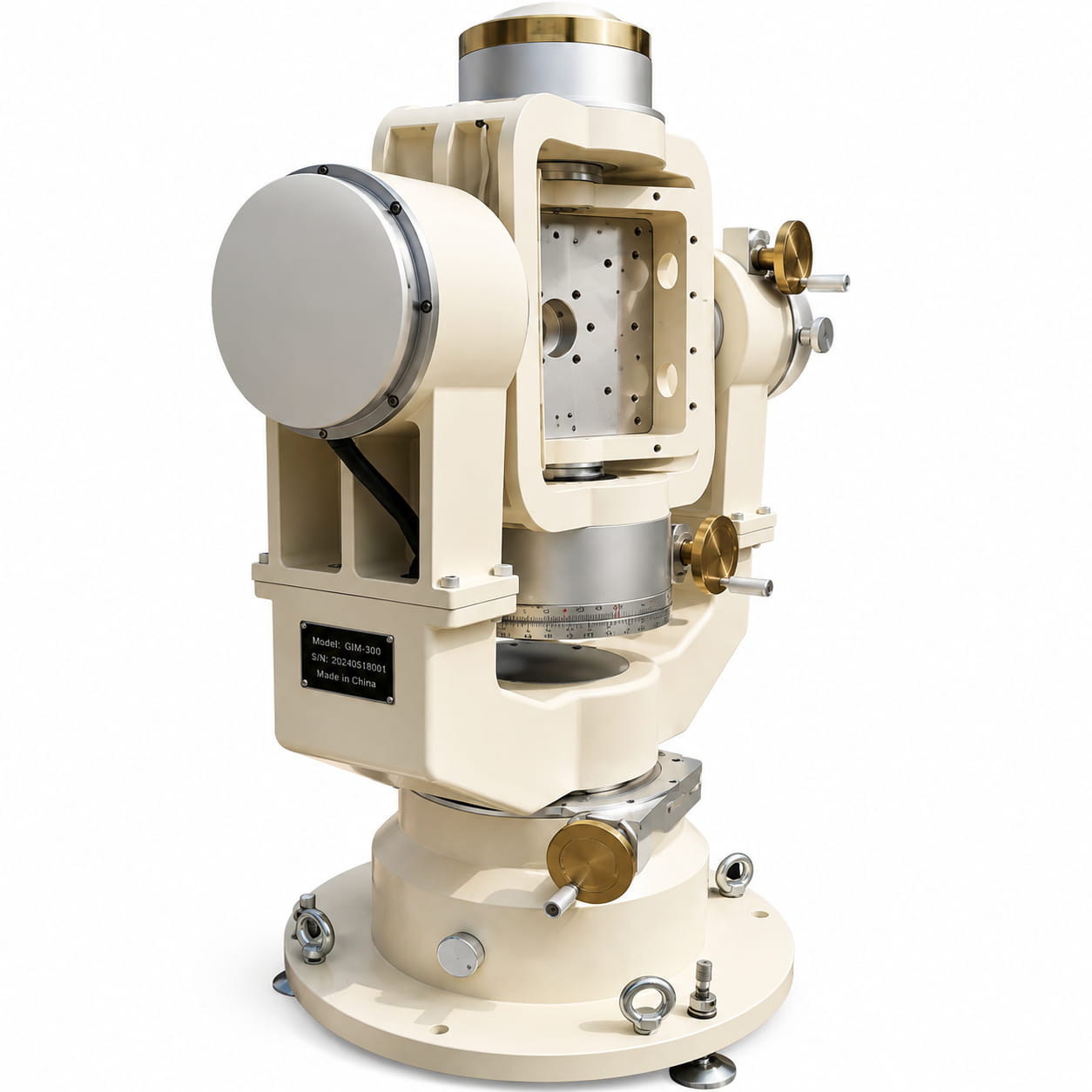

The three-axis non-magnetic turntable, made of non-magnetic materials, is a specialized measuring device designed and produced to meet the calibration needs of attitude sensors during research and development, use, and maintenance. It can be used to calibrate the angular parameters of attitude sensors.
The device primarily consists of a turntable body, a non-magnetic digital encoder, a connecting cable, and integrated display software. The three-axis system of the turntable body employs a worm gear and worm structure for axis rotation. The preliminary indication of the three-axis angles is read using a dial and vernier, while precise angular position information is displayed digitally. The integrated display software can display the three-axis angle values in real time and plot the three-axis attitude change curve in real time. The three-axis data can be saved separately in txt files
Номер детали, :
T3G300NT-3Минимальный объем заказа (MOQ) :
1Product Series and Parameters
| Parameters | T3G300NT-3 |
| Three-axis rotation range | 0°~360° unlimited rotation |
| Three-axis angular position measurement accuracy | Scale ≤ 1°, vernier ≤ 0.1°, digital display ≤ 30" |
| Load-bearing | ≥15KG |
| Inner dimensions | 300×300×200mm |
| Operating surface height | 0.5m |
| Total remanent magnetization | ≤15nT |
| The degree of intersection between two axes | ≤0.1° |
| Intersection degree of three axes | 1mm |
| Rotational error | ≤3′ |
| Operation interface form | Platform type |
| Relative magnetic permeability | ＜1.01 |
| Angle rotation, locking, and fine adjustment | It can rotate, lock, and make fine adjustments at any angle within a three-axis space |
| Leveling | The base has a leveling function, equipped with a level meter or zero baseline calibration, and a reference plane is reserved on the base plane |
| Does it come with a hand-crank lever | Yes |
| Does it come with a three-axis non-magnetic encoder | Yes, it has a reset function |
| Conductor length | ≥4m |
| Is integrated display software included | Yes |
| Encoder and integrated display software refresh rate | ≥25Hz |
| Operating Temperature | 0℃~50℃ |
| Humidity | 20%~85% |
| Drive Type | Three-axis manual |
| Maximum measured size | 250mm×250mm×200mm |
| Three-axis angle sensor | Non-magnetic encoder |
