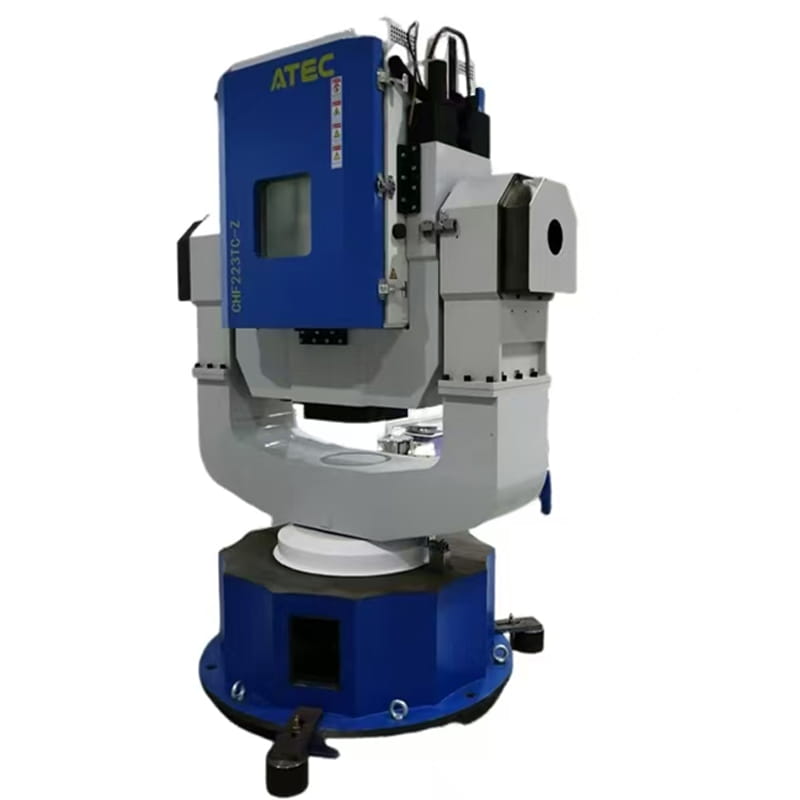

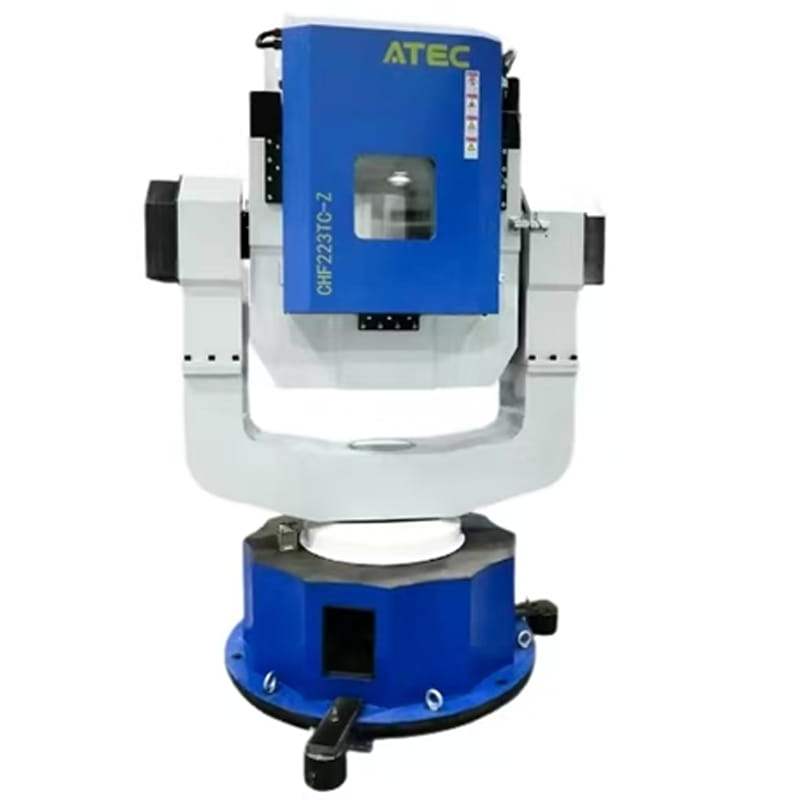

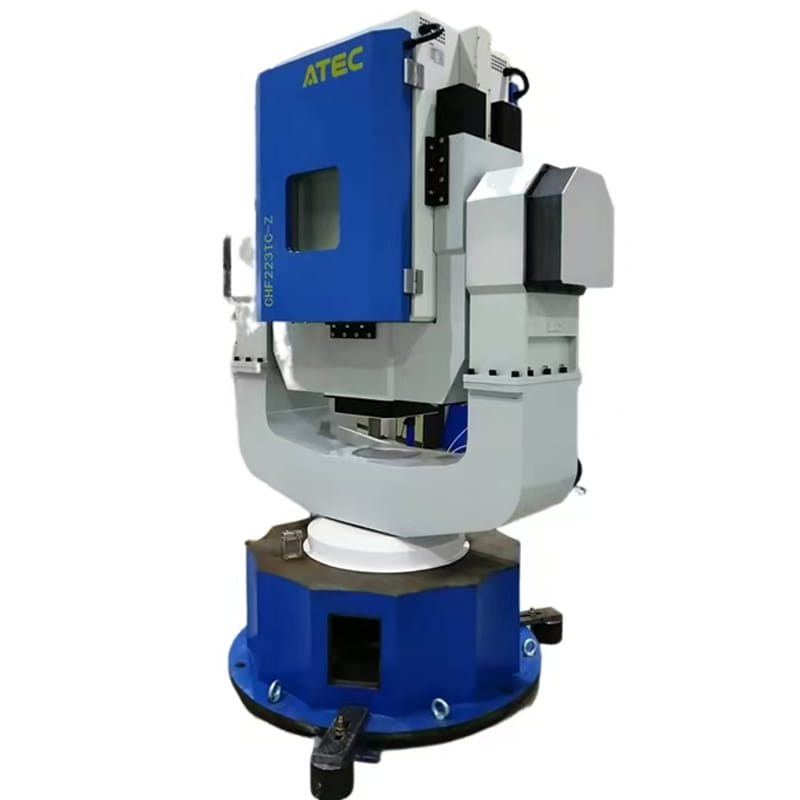

This turntable is a temperature controlled three-axis electric turntable, with all three axes being electric shaft systems and equipped with functions for position, speed, swing, and high/low temperature testing. The turntable is mainly composed of three parts: the mechanical platform, the temperature control box, and the measurement and control system. It is mainly used for testing and calibrating the dynamic and static parameters of the inertial navigation system within the full temperature working range, as well as for testing and calibrating the inertial navigation system at room temperature and inertial components.
Номер детали, :
T3G400PR-3M、T3G500PR-3M、T3G550PR-3MЗаказ (Минимальный заказ) :
1Product Series and Parameters
| Parameter | T3G400PR-3M | T3G500PR-3M | T3G550PR-3M |
| Structural type | U-U-T | U-U-T | U-U-T |
| Table size | φ400 | φ500 | φ550 |
| Maximum load weight | 5KG~50KG | 5KG~50KG | 5KG~50KG |
| Mesa flatness | 0.02mm | 0.02mm | 0.02mm |
| Table jumping | 0.02mm | 0.02mm | 0.02mm |
| Rotation accuracy | Inner loop: ± 2″~± 10″ Central ring: ± 3″~± 10″ Outer ring: ± 3″~± 10″ |
Inner loop: ± 2″~± 10″ Central ring: ± 3″~± 10″ Outer ring: ± 3″~± 10″ |
Inner loop: ± 2″~± 10″ Central ring: ± 3″~± 10″ Outer ring: ± 3″~± 10″ |
| Angular position range | 0~360 ° continuous rotation | 0~360 ° continuous rotation | 0~360 ° continuous rotation |
| Angular position accuracy | Inner loop: ± 3″~± 10″ Central ring: ± 5″~± 10″ Outer ring: ± 5″~± 10″ |
Inner loop: ± 3″~± 10″ Central ring: ± 5″~± 10″ Outer ring: ± 5″~± 10″ |
Inner loop: ± 3″~± 10″ Central ring: ± 5″~± 10″ Outer ring: ± 5″~± 10″ |
| Repetitive angular position | Inner loop: ± 2″~± 7″ Central ring: ± 3″~± 7″ Outer ring: ± 3″~± 7″ |
Inner loop: ± 2″~± 7″ Central ring: ± 3″~± 7″ Outer ring: ± 3″~± 7″ |
Inner loop: ± 2″~± 7″ Central ring: ± 3″~± 7″ Outer ring: ± 3″~± 7″ |
| Angular rate range | Inner ring: 0.001~1500°/s Central ring: 0.001~2000°/s Outer ring: 0.001~100°/s |
Inner ring: 0.001~1500°/s Central ring: 0.001~2000°/s Outer ring: 0.001~100°/s |
Inner ring: 0.001~1500°/s Central ring: 0.001~2000°/s Outer ring: 0.001~100°/s |
| Angular rate accuracy and stability | (1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
| Maximum angular acceleration | Inner ring: 1000°/s ² Central ring: 150°/s ² Outer ring: 300°/s ² |
Inner ring: 1000°/s ² Central ring: 150°/s ² Outer ring: 300°/s ² |
Inner ring: 1000°/s ² Central ring: 150°/s ² Outer ring: 300°/s ² |
| Way of working | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway |
| Slip ring | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) |
| MTBF | ≥2000 | ≥2000 | ≥2000 |
| Continuous working hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours |
| Communication interface | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) |
| Temp Chamber indicators | |||
| Internal cavity size: | 500×500×500mm | 6000×600×600mm | 650×650×650mm |
| Temp control range | -60~150 ℃ (optional) | -60~150 ℃ (optional) | -60~150 ℃ (optional) |
| Ramp rate | ± 2 ℃~± 5 ℃ (optional) | ± 2 ℃~± 5 ℃ (optional) | ± 2 ℃~± 5 ℃ (optional) |
| Temp fluctuation | ± 0.3 ℃~± 1 ℃ (optional) | ± 0.3 ℃~± 1 ℃(optional) | ± 0.3 ℃~± 1 ℃ (optional) |
| Temp uniformity | ≤2℃ | ≤2℃ | ≤2℃ |
| Temp deviation | ≤±2℃ | ≤±2℃ | ≤±2℃ |
| Dry wind blowing | optional | optional | optional |
| Bandwidth | Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
Inner ring: 10Hz (adjustable) Middle ring: 3Hz (adjustable) Outside ring: 3Hz (adjustable) |
| Loading size | φ300*300 | φ400*400 | φ500*500 |
