Single Axis Angular Rate Turntable with Temp Champer Test Machine

Single-axis temperature chamber turntable

Temperature chamber turntable for testing

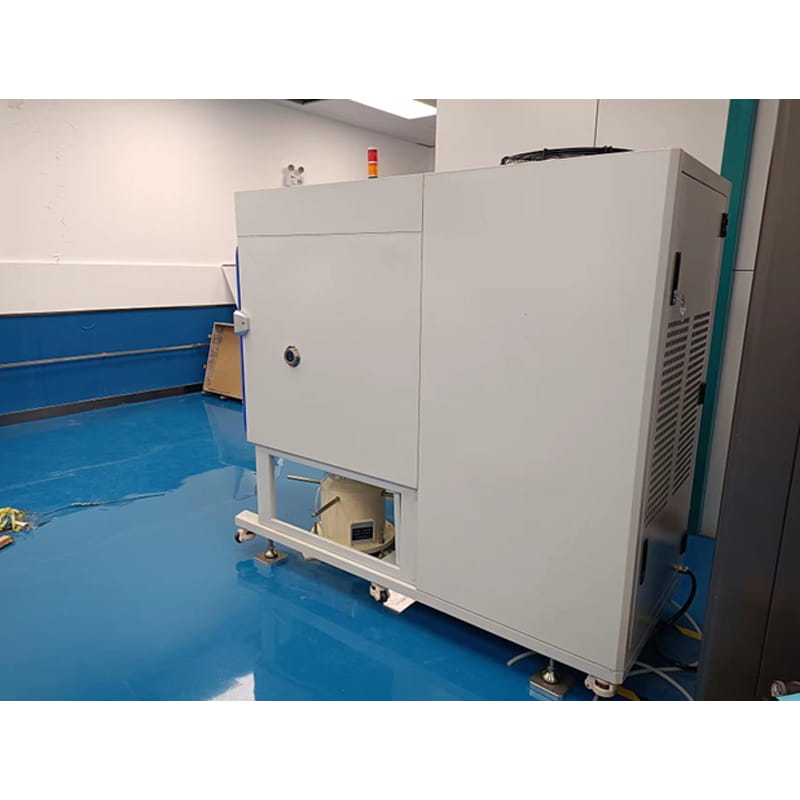

Single Axis Angular Rate Turntable with Temp Champer Test Machine

This single axis rate turntable with temp chamber is used for reliability assessment of dynamic and static parameters of inertial navigation systems at room temperature, high and low temperatures, and can also be used for testing and calibration of inertial device parameters

Номер детали, :
T1G400PR-1M、T1G450PR-1M、T1G500PR-1M、T1G600PR-1M
Заказ (Минимальный заказ) :
1

Запросить сейчас

Категории

как мы можем вам помочь

Вы можете связаться с нами любым удобным для вас способом. Мы доступны 24/7 по электронной почте или телефону.

Новые продукты

ОПИСАНИЕ

Product Series and Parameters

Parameter	T1G400PR-1M	T1G450PR-1M	T1G500PR-1M	T1G600PR-1M
Structural type	Vertical	Vertical	Vertical	Vertical
Table size	φ400	φ450	φ500	φ600
Maximum load weight	5KG~50KG	5KG~50KG	5KG~50KG	5KG~50KG
Mesa flatness	0.02mm	0.02mm	0.03mm	0.04mm
Table jumping	0.02mm	0.02mm	0.03mm	0.04mm
Rotation accuracy	±1″~±5″	±1″~±5″	±2″~±5″	±1″~±5″
Angular position range	0~360 ° continuous rotation	0~360 ° continuous rotation	0~360 ° continuous rotation	0~360 ° continuous rotation
Angular position accuracy	±1″~±10″	±1″~±10″	±1″~±10″	±1″~±10″
Repetitive angular position	±1″~±7″	±1″~±7″	±1″~±8″	±1″~±7″
Angular rate range	0.001°/s~1000°/s	0.001°/s~1200°/s	0.001°/s~1000°/s	0.001°/s~600°/s
Angular rate accuracy and stability	(1° average) 5×10^-3 (10° average) 5×10^-4 (360° average) 5×10^-5	(1° average) 5×10^-3 (10° average) 5×10^-4 (360° average) 5×10^-5	(1° average) 5×10^-3 (10° average) 5×10^-4 (360° average) 5×10^-5	(1° average) 5×10^-3 (10° average) 5×10^-4 (360° average) 5×10^-5
Maximum angular acceleration	10000°/s²	4000°/s²	3000°/s²	1000°/s²
Way of working	Speed, position, sway	Speed, position, sway	Speed, position, sway	Speed, position, sway
Slip ring	30 rings (optional)	30 rings (optional)	30 rings (optional)	30 rings (optional)
MTBF	≥2000	≥2000	≥2000	≥2000
Continuous working hours	≥ 12 hours	≥ 12 hours	≥ 12 hours	≥ 12 hours
Communication interface	RS422/RS232/Ethernet (optional)	RS422/RS232/Ethernet (optional)	RS422/RS232/Ethernet (optional)	RS422/RS232/Ethernet (optional)
Temp Chamber indicators
Internal cavity size:	500×500×500mm	550×550×550mm	600×600×600mm	700×700×700mm
Temp control range	-60~150 ℃ (optional)	-60~150 ℃ (optional)	-60~150 ℃ (optional)	-60~150 ℃ (optional)
Ramp rate	± 2 ℃~± 5 ℃ (optional)	± 2 ℃~± 5 ℃ (optional)	± 2 ℃~± 5 ℃ (optional)	± 2 ℃~± 5 ℃ (optional)
Temp fluctuation	± 0.3 ℃~± 1 ℃ (optional)	± 0.3 ℃~± 1 ℃ (optional)	± 0.3 ℃~± 1 ℃ (optional)	± 0.3 ℃~± 1 ℃ (optional)
Temp uniformity	≤2℃	≤2℃	≤2℃	≤2℃
Temp deviation	≤±2℃	≤±2℃	≤±2℃	≤±2℃
Dry wind blowing	optional	optional	optional	optional
Bandwidth	10Hz (adjustable)	10Hz (adjustable)	10Hz (adjustable)	10Hz (adjustable)
Loading size	φ300*300	φ400*400	φ450*450	φ550*500

Production process

Product Pictures

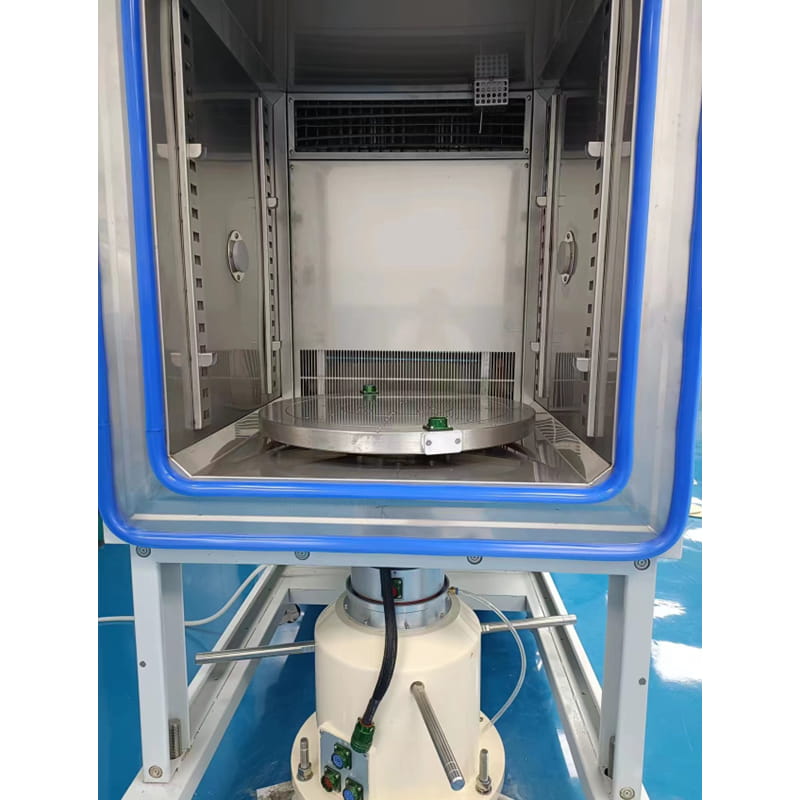

Temp chamber inside turntable
Temp chamber inside turntable

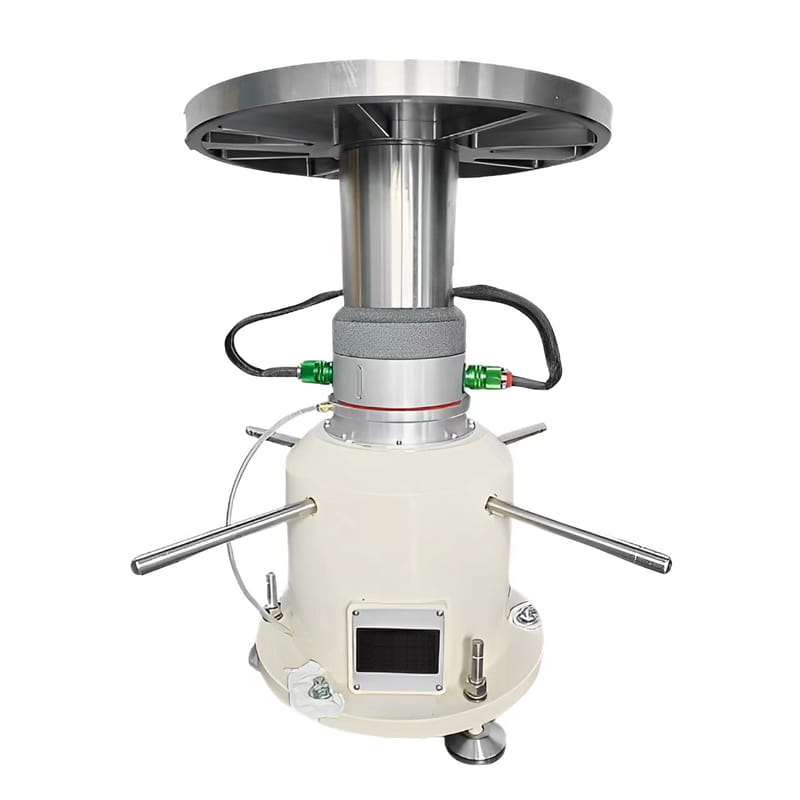

Product outline turntable

Application Scenarios

single-axis temperature-controlled rotary table application

At different temperatures, by applying a "rotational stimulus" to only one axis, the temperature drift, zero bias, and scale factor issues of the gyroscope/IMU on that specific axis can be accurately measured and calibrated.

Inertial Measurement Unit

Inertial Navigation System

Attitude and Heading Reference System

FAQ

Q1: What devices can this turntable test?
A:This turntable is designed for testing and calibrating IMUs, MEMS sensors, gyroscopes, and inertial navigation systems under dynamic and static conditions.

Q2: Does the system support high and low temperature testing? What is the temperature range?
A: Yes, it is equipped with a precision temperature chamber with a range of -60℃ to +150℃ (optional), suitable for temperature drift and environmental stress screening tests.

Q3: What is the angular rate range and positioning accuracy?

A: The angular rate ranges from 0.001°/s to up to 1200°/s. Angular positioning accuracy is up to ±1″, with repeatability between ±1″ to ±8″.
